Available starting November 13th

The Loop TKL

The next generation of the tenkeyless form factor from Mode. Available Now

Limited First Edition Drop.

This first batch will be limited to 300 units, each with a unique numbered authentication card. Stay in the loop and subscribe below to receive a reminder email.

A Closer Look at the Prototype

Loop sounds and features
Refined Accents

The Loop features a new split ring design joining the top and bottom halves together, looping around the periphery of the board for a subtle and elegant accent. An accent strip across the forehead of the board and a solid weight mounted underneath the board round out the refined accents in this board.

Lattice Block Mount System

Loop uses a split ring multi-component chassis design that sandwiches the lattice blocks within the inner ring. The thick top skin of the lattice blocks acts as a "force break", isolating the metal top case and ring from each other for a reduction of resonance between the chassis components.

Three Unique Colorways

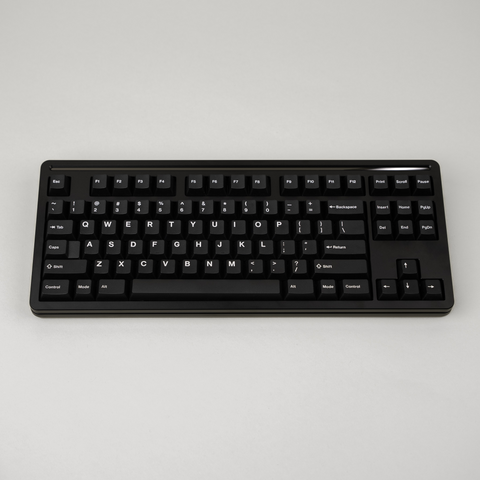

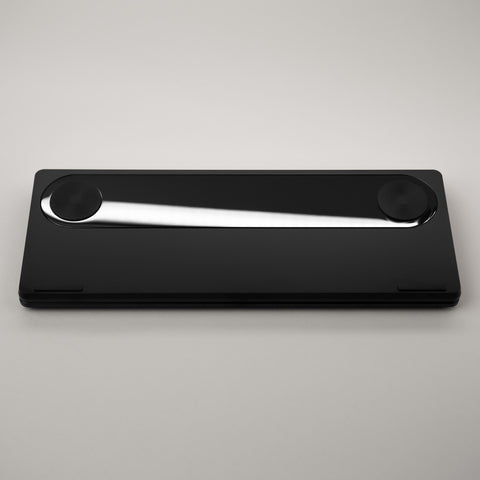

Cassette: Black Chassis / Brass Black Mirror Accent, Weight, and Ring.

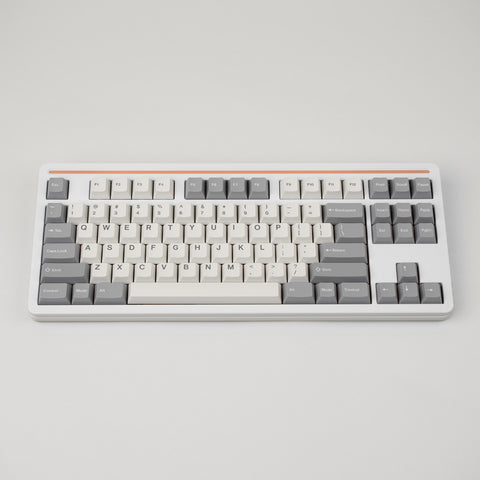

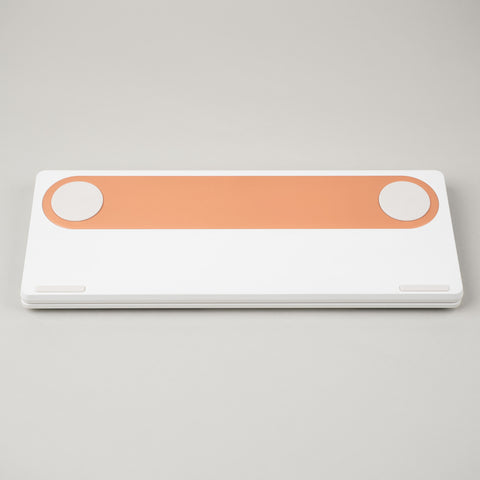

Aria: White Chassis / Copper Accent, Weight, and Ring.

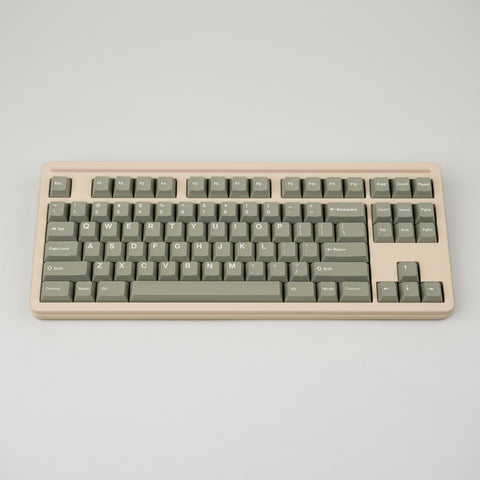

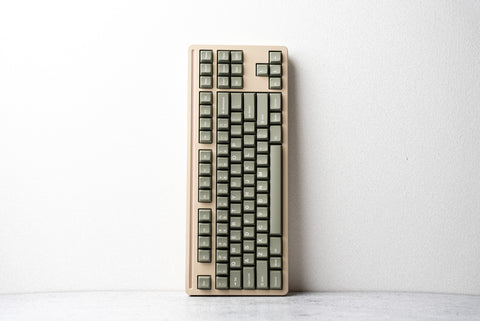

Penrose: Crema Chassis / Rose Accent, Weight, and Ring.

Refined Accents
Lattice Block Mount System
Three Unique Colorways

FAQ

The Loop TKL will be available on November 13th at 1:00PM EST. This first edition drop is limited to 300 units.

The Loop starts at $359. The first edition variants are priced as follows:

Penrose: $359
Aria: $549
Cassette: $599

This first batch of 300 Loop TKLs are to expected to ship within 2 weeks after the sale.

6.25u/7u Bottom Row, Standard/Stepped Capslock, Split Right Shift (Solder Only), Split Backspace (Solder Only) ISO (Solder Only)

The Mode Loop TKL makes use of the Lattice Block mounting method that was introduced on the Envoy and Tempo keyboards with some improvements based on user feedback. Instead of using retaining fasteners to keep the PCB and Plate from falling out of the board when tipped upside down, Loop uses a split ring multi-component chassis design that sandwiches the lattice blocks within the inner ring.

The thick top skin of the lattice blocks acts as a "force break", isolating the metal top case and ring from each other for a reduction of resonance between the chassis components.

This first batch of 300 Loop TKLs is a limited production run to gauge overall interest in the design after which we may open a pre-order with additional options.

Technical Specs

Measurements

Typing Angle: 5.8 Degrees

Front Height: 19.5mm

Dimensions: 365mm x 147mm x 32mm

Weight: 3.5-7lbs

PCB & Layout

Thickness: 1.6mm

Switches: 86-89

Firmware: QMK with VIA support

MCU: ARM

Materials

Case: Aluminum

Accent: Aluminum, Brass, Copper

Weight: Aluminum, Brass, Copper

Plate: Aluminum, POM, Carbon Fiber, Copper, FR4

Box Contents

Keyboard Case

Feet and Mounting Blocks

PCB + Daughterboard

Carry Case

Screwdriver

Keycap and Switch Puller

Various Fasteners

Gallery
